The M601 delivers hospital-grade air purification with intelligent monitoring and extremely low power consumption
23

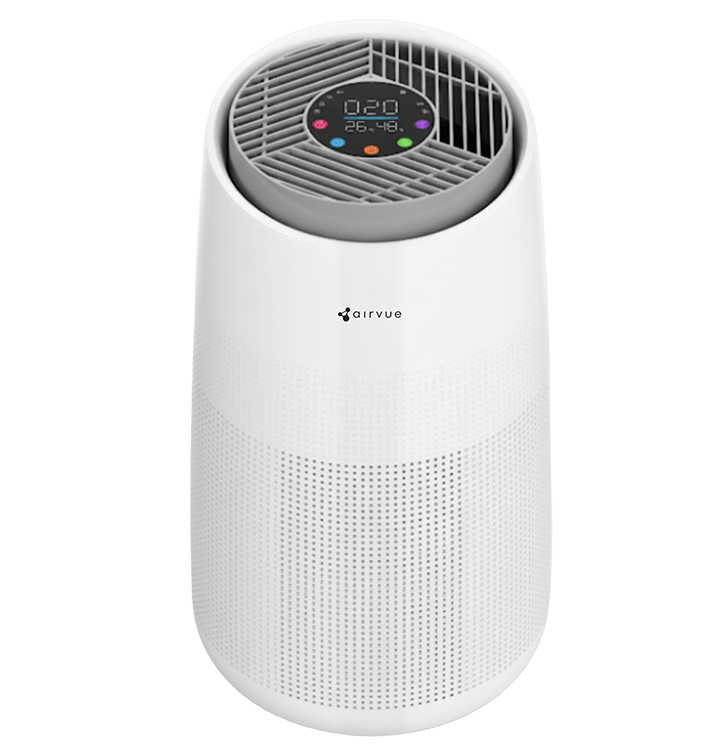

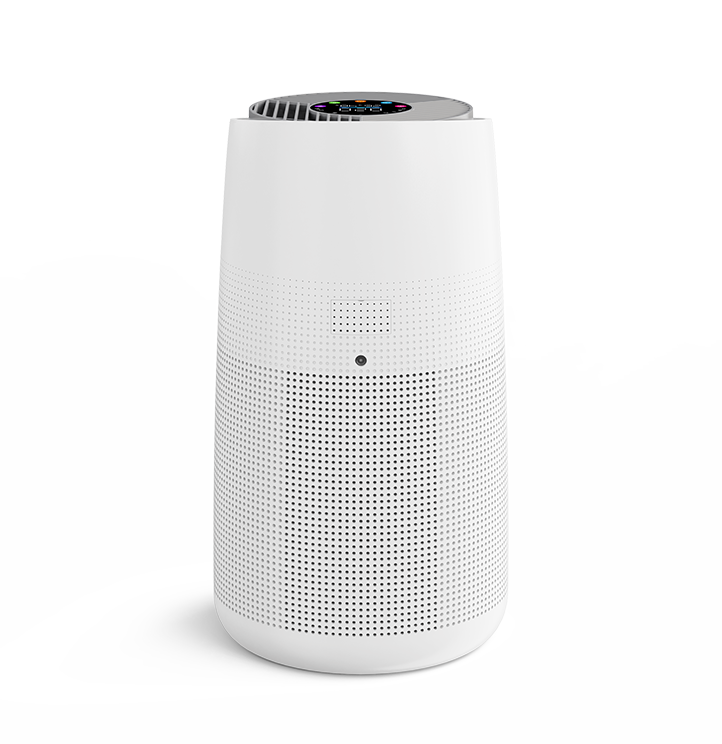

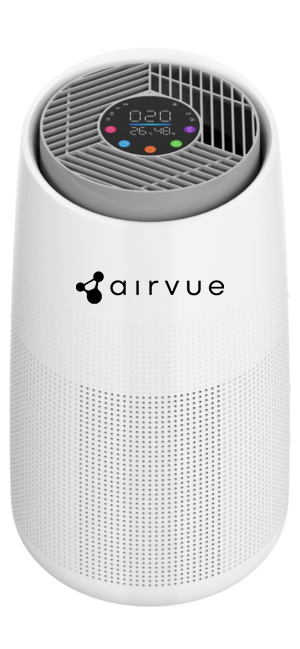

NIPPO AIRVUE MID RANGE AIR PURIFIER SERIES - M601
ranger
suality
Where M601 Air Purifier Fits Best ?

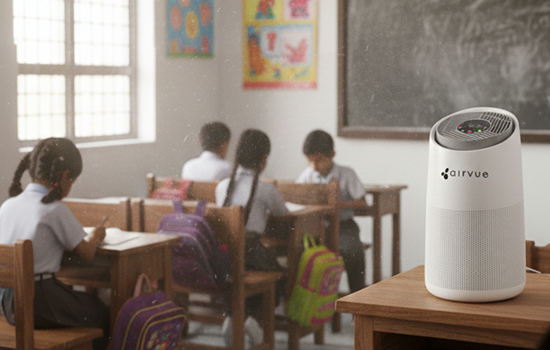

Schools
maintaining clean, safe air for students & teachers.

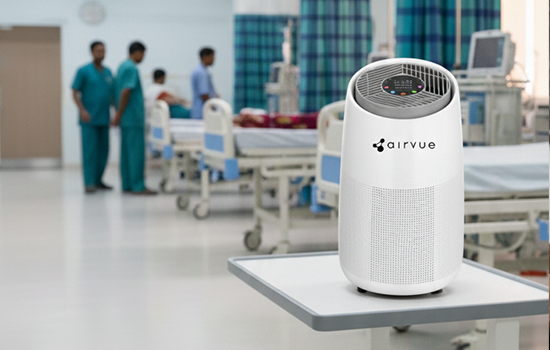

Hospitals
To reduce airborne infections, bacteria, viruses, and maintain sterile indoor air.

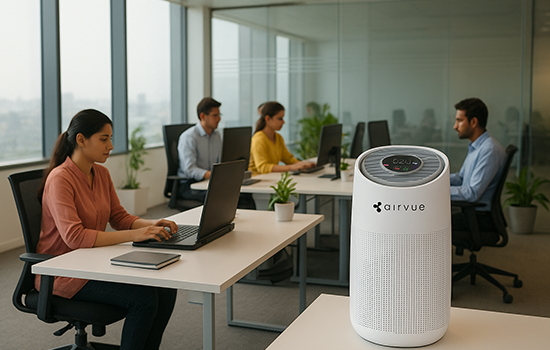

Offices
Useful for preventing workplace infections and sick leaves.

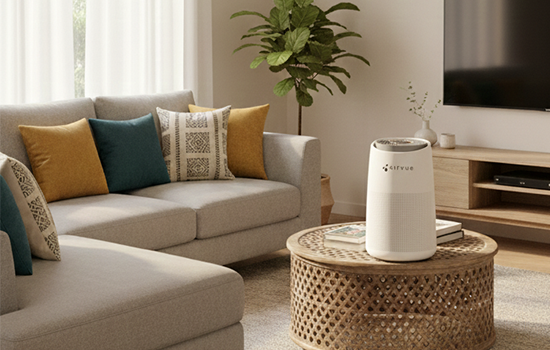

Residential
Improving Sleep Quality
Cleaner air can reduce nighttime allergies and respiratory discomfort.
Performance
| Parameter | Specification |
|---|---|
| Coverage Area | Up to 600 sq.ft |
| CADR | 350 m³/h |
| ACH | 2–4 air changes per hour (depending on room size) |
| PM2.5 Reduction | ≥ 99% |
| VOC/Formaldehyde Reduction | ≥ 99.9% |
| Microbial Reduction | ≥ 99.99% |
Smart Features
| Feature | Details |
|---|---|
| Connectivity | Wi-Fi enabled |
| App Control | ON/OFF, fan speed, timer, filter life, AQI |
| Sensors | Dust (PM) + VOC sensor |
| Display & Indicators | PM2.5 real-time display, AQI color indicator |
| OTA Compatibility | Ready for firmware upgrades |
Power & Motor
| Parameter | Specification |
|---|---|
| Motor Type | High-efficiency BLDC motor |
| Rated Power | 48W |
| Input | DC 24V, 2A |

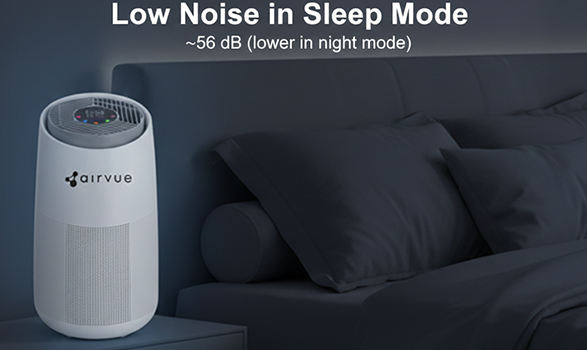

| Noise Level | ~56 dB (lower in night mode) |
| Power Efficiency | Optimized for 24×7 operation |

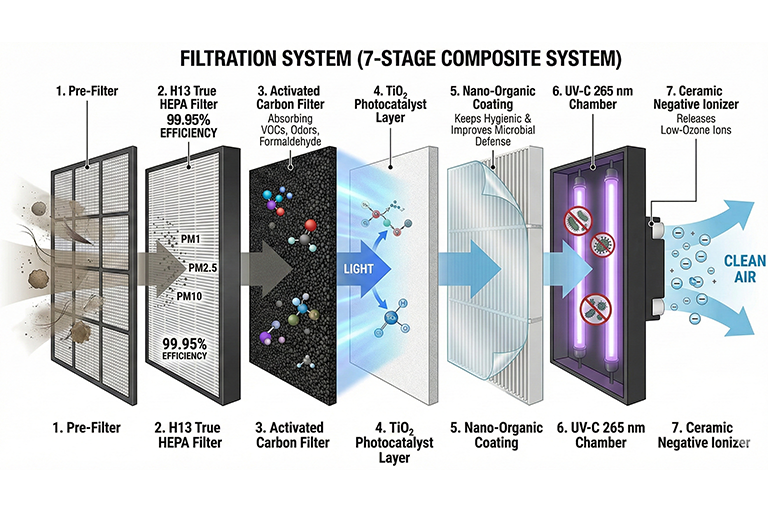

Filtration System (7-Stage Composite System)
| Stage | Function |
|---|---|
| 1. Pre-Filter | Captures large dust, hair, and fibers |
| 2. H13 True HEPA Filter | Removes PM1/PM2.5/PM10 with 99.95% efficiency |
| 3. Activated Carbon Filter | Removes VOCs, odors, formaldehyde |
| 4. TiO₂ Photocatalyst Layer | Breaks down harmful chemical compounds |
| 5. Nano-Organic Coating | Keeps filter surfaces hygienic & improves microbial i t |
| 6. UV-C 265 nm Chamber | Eliminates airborne pathogens safely inside the d i |
| 7. Ceramic Negative Ionizer | Releases low-ozone ions to cluster ultrafine |
